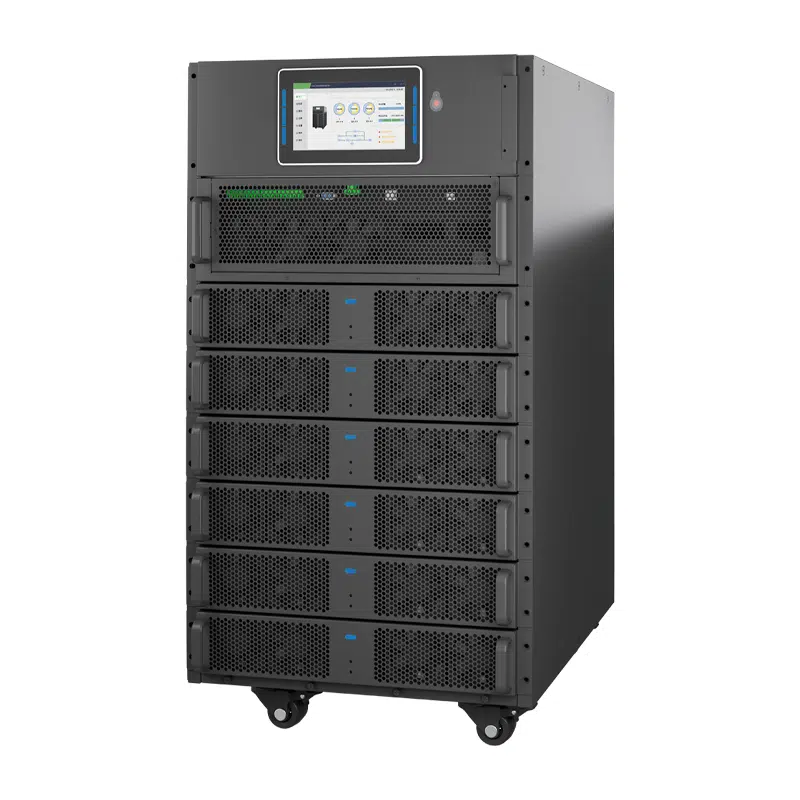

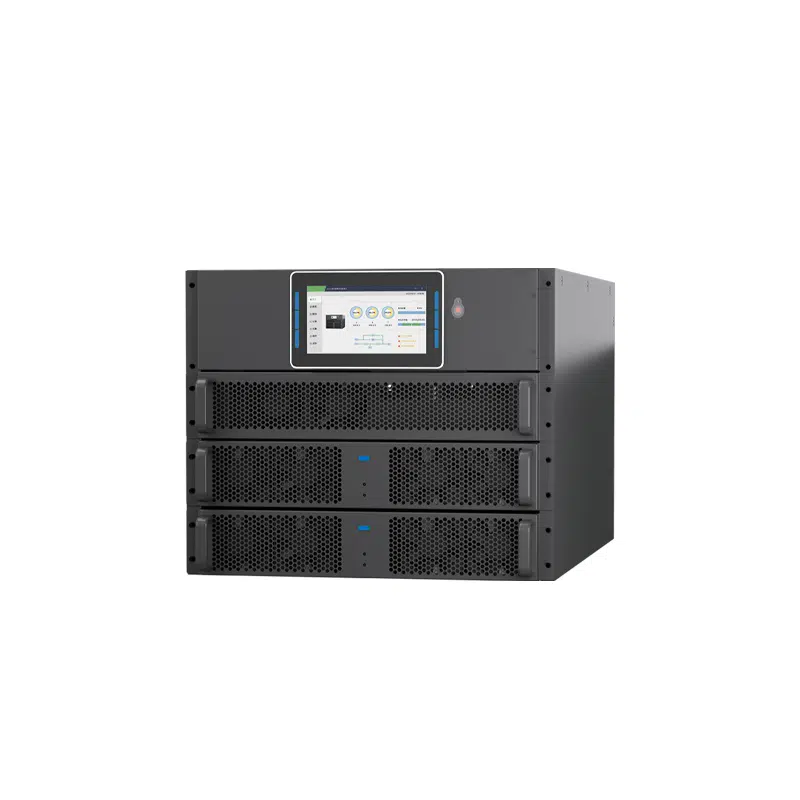

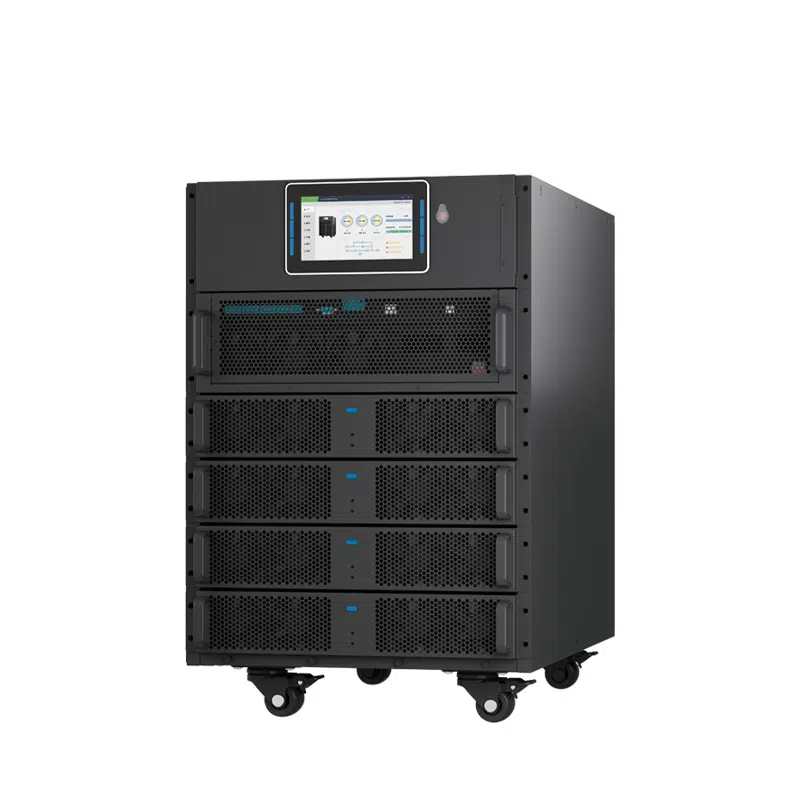

20kVA Scalable to 200kVA Modular Online UPS

304 - 478 Vac ; 3 Phase + N + G

Overviews

SY-M 20-200kVA series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 20kVA to 200kVA. With the latest IGBT 3-level and full DSP control technology, the SY-M series delivers the best of combination of reliability, hot-swappable and flexibility.

Capacity	60kVA - 200kVA
Input Phase	3 Phase+N+G, 380V/400V/415V (line-line)
Output Voltage	380/400/415Vac (line-line)
Frequency Range	40 Hz ~ 70 Hz

Inquire Now

Features
Specifications
Applications
Download

• Modular Design

Up to 20 power modules in parallel online hot-swappable N+X redundancy

• Independent Charger

Independent charger for each module and intelligently control the whole charging process, prolong the life time of the battery

• Battery cold start

UPS can be powered on from the battery without utility

• Easy connection access

Top and bottom cable entry connection are supported, more convenient for site installation

• Modular design with transformer

Modular UPS up to 60kVA with in-built isolation transformer meeting different requirement for customers

• High power density

200kVA with footprints of about 0.5㎡ ,saving valuable data center space

• Integrated IGBT design

Integrated IGBT in one module, less failure points with higher performance and reliability

• Friendly interface

Touch LCD display with abundant information

• Independent air channel

Cooling air runs in isolated channel, keeping PCB free of dust

Read More
MODEL SYM200/20 SYM120/20 SYM060/20

System Capacity 200kVA 120kVA 60kVA

Power Module Capacity 20kVA/18kW

Input Dual Input Optional

Phase 3 Phase + Neutral + Ground, 380V/400V/415V (line-line)

Input Voltage Range 　 304 - 478V ac (line-line) fullload;
228V ~ 304ac (line-line) load decreases linearly according to the min phase voltage

Rate Frequency 50/60Hz

Input Frequency Range 40Hz ~ 70Hz

Input PF >0.99

Input THDi <3%(100% Linear load)

Bypass Rate Voltage 380/400/415Vac (line-line)

Rate Frequency 50/60Hz

Input Voltage Range Settable, -40% ~ +25%

Bypass Frequency Range Settable, ±1Hz, +3Hz, ±5Hz

Bypass Overload 125% long term operation; 130% for 1 hour;150% for 6 mins; 1000% for 100ms

Output Rate Voltage 380/400/415Vac (line-line)

Voltage Regulation 1% for balance load; 1.5% for unbalance load

Rate Frequency 50/60Hz

Frequency Precision 0.1%

Output PF 0.9

Output THDu <1%, Linear load; <5.5%, Non-linear load

Crest Factor 3:1

Inverter Overload 110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms

Battery Voltage ±240Vdc

Battery Number 40pcs (Settable: even number from 32 to 44)

Voltage Precision ±1%

Charge Power up to 20% Output active power

Battery Cold Start Standard

Efficiency AC Mode 95.0%

ECO Mode 99.0%

Battery Mode 95.0%

System Display 5.7'' touch screen LCD + LED + keyboard

IP Class IP 20

Interface RS232, RS485, Programmable Dry Contact

Option SNMP Card, Parallel kit, SPD, LBS, Dust filter

Temperature Operation:0 ~ 40°C Storge: -40 ~ 70 °C

Relative Humidity 0 - 95% Non-condensing

Physical Altitude <1000m. Within 1000m to 2000m, 1% power derating for every 100m rise

Noise (1 meter) 55dB @ 50% load

Applicable Standards Safety: IEC/EN 62040-1 EMC:IEC/EN 62040-2 Performance: IEC/EN 62040

Weight (kg) Cabinet 180 150 105

Power module 22

Dimension
W*D*H(mm) Cabinet 600*900*2000 600*900*1600 600*900*1100

Power module 440*590*134

Read More
Read More
Brochure of Modular UPS Download Read More
